Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KWI/KWE/KWH
Product Info
- KW series are designed for a wealth of flux transmission with no need for a valve
- A quick coupler with the dual-closing function
- Used for devices that require a lot of flux such as high-pressure car washing and coolant line
Compatibility
NITTO TSP
Specification
| Body Material | BRASS, SUS(303,316) | |||||||
|---|---|---|---|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1" | 1 1/4 | 1 1/2 | 2" |
| Pressure Capacity (kgf/cm2) |
50 | 30 | 20 | 15 | ||||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | |||||
| VITON | -20℃~+130℃ | standard | ||||||
| NBR | -20℃~+80℃ | Non-standard | ||||||

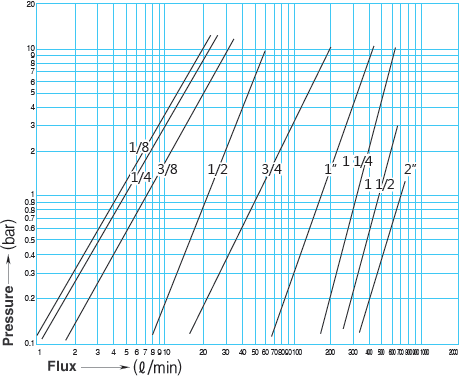

Flux&Pressure

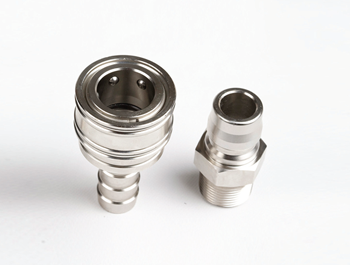

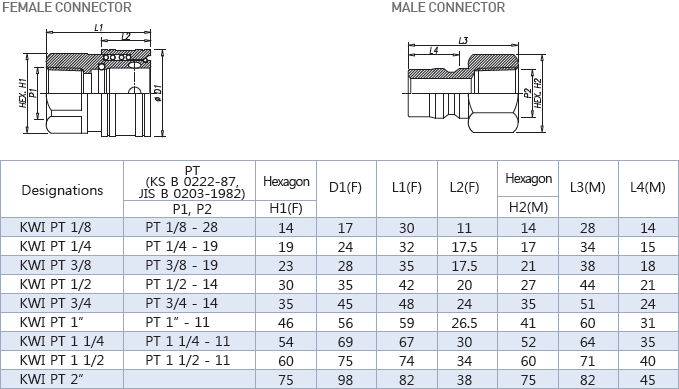

Series KWI

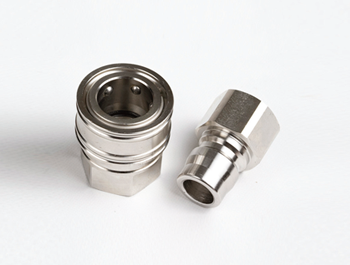

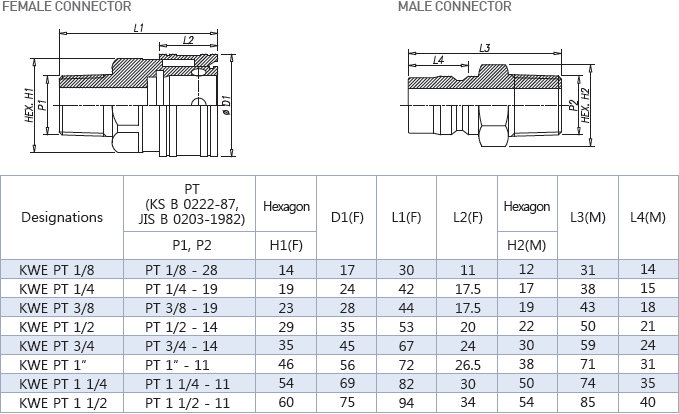

Series KWE

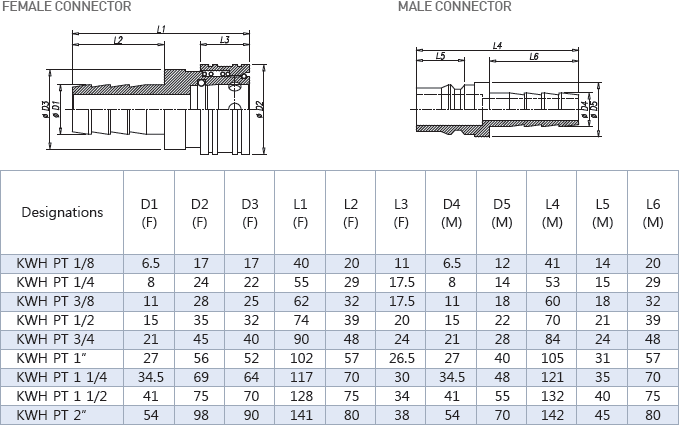

Series KWH
