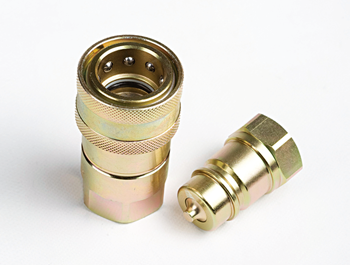

Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KCA
Product Info
- KCA series complies with the standards for ISO 7241 – 1 series A
- A quick coupler with the dual-closing function
- Adopted for complicated hydraulic devices in such areas as industry, construction, forestry, and machinery
Compatibility
PARKER 6600, FASTER ANV, CEJN X95, NITTO 210
Specification
| Body Material | STEEL, STAINLESS(303,316) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1" | 1 1/4 | 1 1/2 | 2" | |
| Pressure Capacity (kgf/cm2) |
STEEL | 210 | 180 | 150 | |||||
| STEELSTAINLESS | 50 | 40 | 30 | ||||||
|
Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | ||||||
| VITON | -20℃~+130℃ | Standard | |||||||
| NBR | -20℃~+80℃ | Non-standard | |||||||

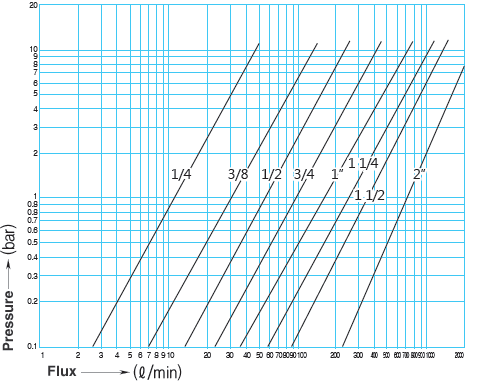

Flux&Pressure

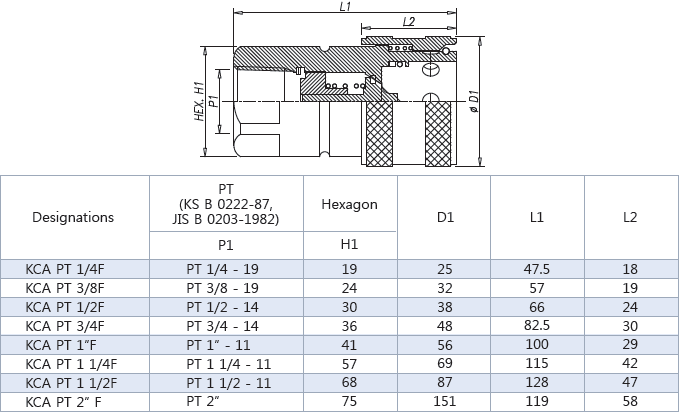

FEMALE CONNECTOR

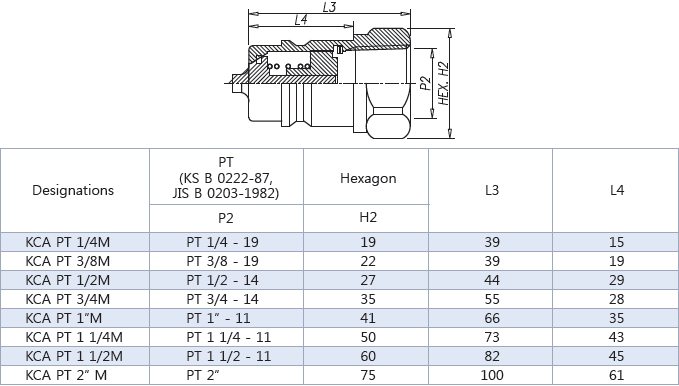

MALE CONNECTOR
